Sterlite Power’s renewable energy innovation using a collaborative design workflow helps deliver reliable power to over 30 million residents in north-east India
India is strongly committed to its renewable energy targets, which are aimed at quickly reducing carbon emissions. The North Eastern Regional (NER) Grid of India, serving a population of more than 30m, wants to improve reliability of power evacuation, reduce intermittency and accelerate sustainability of renewables for this region.
The Ministry of Power in India awarded Sterlite Power, a global developer of power transmission infrastructure projects in India, the NER-II Transmission Limited project to develop transmission lines across the region. Sterlite Power is an established technology leader in this sector and a sponsor of India’s first power sector Infrastructure Investment Trust.
The project is of strategic importance to India’s renewable energy targets. It strengthens interconnection with the states of Assam and Arunachal Pradesh and provides an additional source of power to Arunachal Pradesh’s capital city of Itanagar.
However, the project was complex, including designing and constructing a 400kV/132kV substation in Tripura state to evacuate gas-generated power from ONGC’s Palatana power plant (a 726.3MW combined-cycle gas turbine).
The substation was the only one delivering much-needed power to Tripura state. Considering the importance of this substation for the local region, efficient design and construction of a new substation within a tight schedule were necessary for rigorous project monitoring and real-time construction updates. Seamless and accurate information flow among stakeholders was crucial to ensure timely delivery of the substation.
Challenge
Sterlite Power realised they needed a modelling solution that would deliver right-first-time design by detecting and resolving clashes early in the design process. However, traditional 2D design methods for substation planning limited the design team’s ability to detect clearance problems between electrical components and support structures.
Additional challenges included managing interdependency among activities, design-plan inter-linkage, a lack of real-time progress data and inefficient resource planning. These inefficiencies posed enormous risks in the substation construction timeline adding prolonged inspections, handovers and resource training difficulties. Therefore, 3D modelling proved to be the best method.
Breakthrough

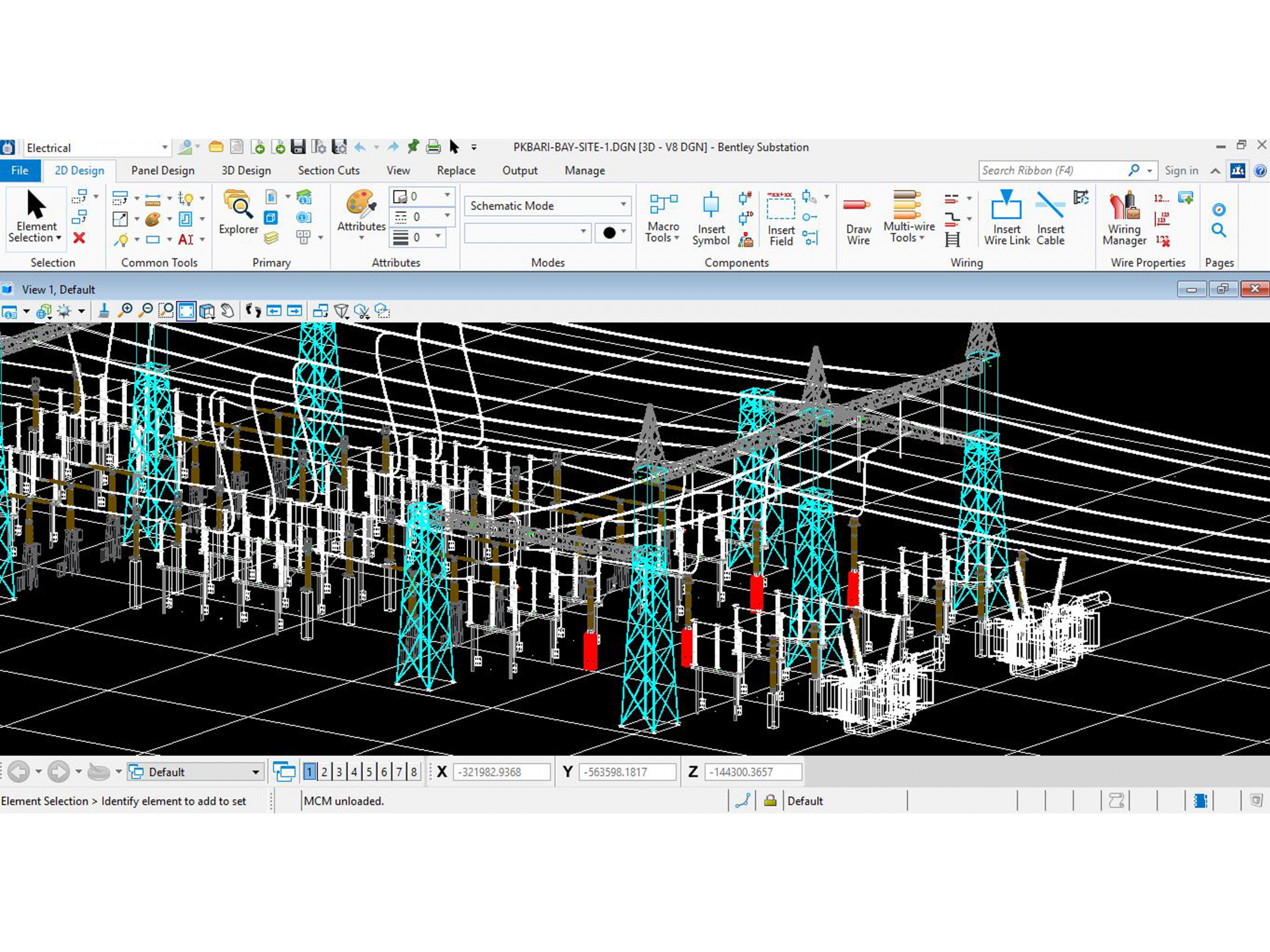

Sterlite Power overcame inefficiencies that conventional design methodologies posed by turning to Bentley’s OpenUtilities Substation for 3D modelling and ProjectWise to streamline design and collaboration. This technology change enabled them to detect clearance violations between electrical components and structural supports. The digital libraries provided traceability, accountability and exportability of models for proper equipment connections.
Adopting BIM 4D technology using SYNCHRO also helped Sterlite Power utilise virtual reality to further optimise and refine design and planning. They generated a detailed reality model from images captured with unmanned aerial vehicles, which helped them further optimise substation layout and increase design and planning efficiency.
“With Bentley’s ProjectWise, our project team was able to work in complete collaboration, even when separated by distance,” said Pratik Agarwal, managing director, Sterlite Power.
“Design being the heart of infrastructure projects, the application’s real-time review system helped us save huge hours of reworking on design errors and enabled us to accelerate the renewable energy journey of India.”
Outcome
Using OpenUtilities Substation, Sterlite Power was able to check for electrical clearance issues and detect problems early in the design process, which helped them reduce rework. They saved nearly INR 2.3m and over a month on the project schedule. The cost and time savings can be attributed to a reduction in design closure time through enhanced collaboration and a digitalised workflow using a connected data environment.
